SIGNA™ Premier – 70cm


The world's most powerful SIGNA™ MR ever.

There is a real-world need for a shift in engineering philosophy towards disease-specific, outcomes-based technology. This need is so great that we've formed strategic partnerships with organizations that are investing millions of dollars in the research and development of diagnostic technologies that can better detect mTBI. To help with this effort, we built Tomorrow's MR, the SIGNA™ Premier, an advanced MR system equipped with innovative coil and gradient technology that directly links to cloud-based analytics. It's the future of MR technology and it's ready today.

Watch the video

First impressions with SIGNA Premier

First impressions with AIR Technology

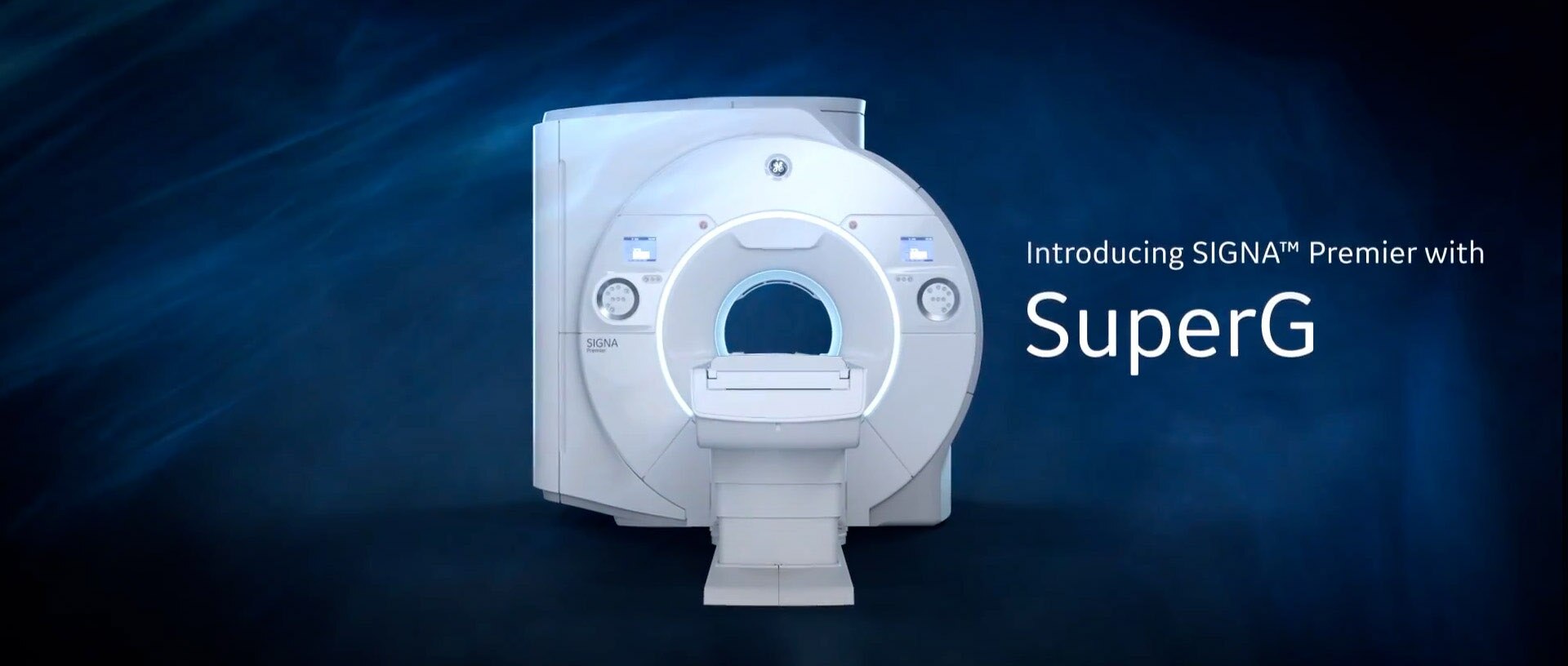

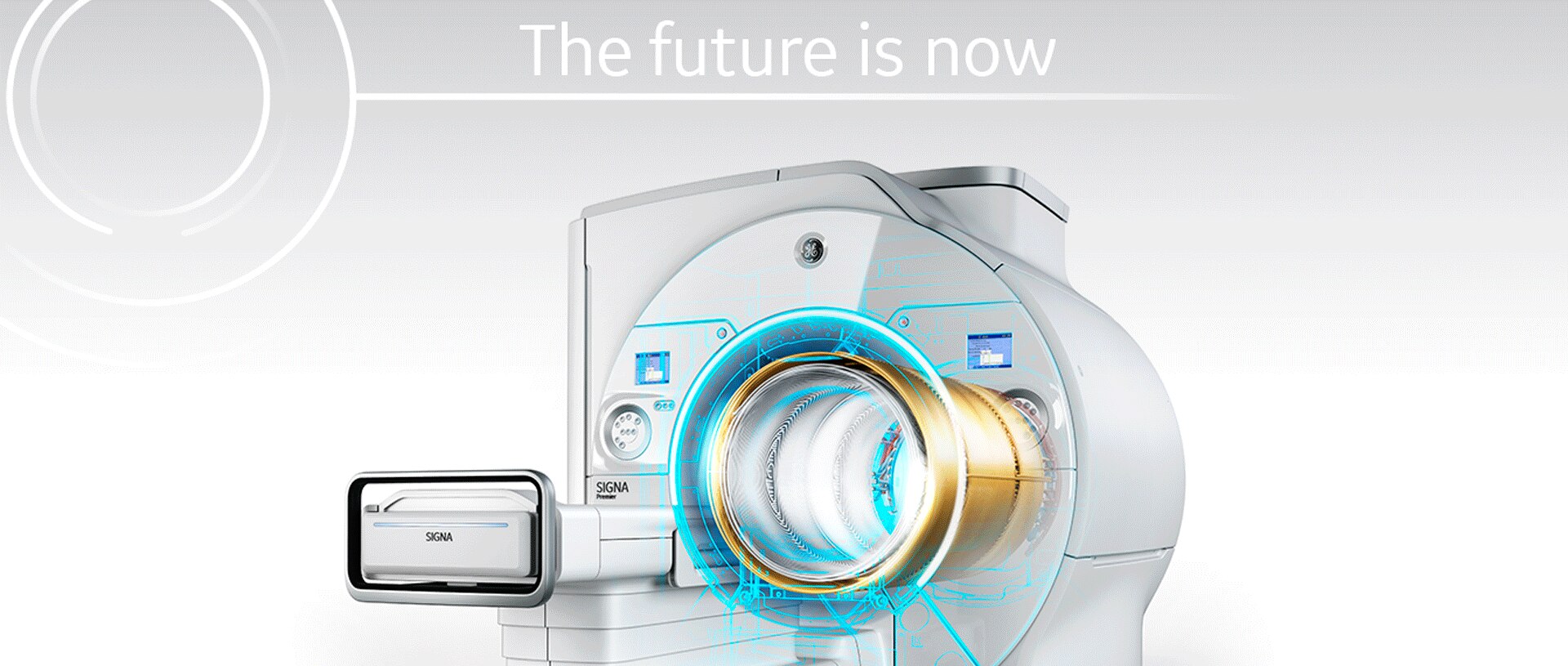

SuperG

The latest in gradient coil technology

product-product-categories-magnetic-resonance-imaging-signa premier-1.png
product-product-categories-magnetic-resonance-imaging-signa premier-2.png
product-product-categories-magnetic-resonance-imaging-signa premier-3.png

60 cm performance in a 70 cm bore

Everyone should have access to high-performance MR image quality. That’s why, with SIGNA™ Premier, we started with the 70 cm patient bore. From there, we found a way to maintain the thermal stability of a high-performance gradient in a wide bore. SuperG gradient coil technology improves acquisition speeds by leveraging force-balanced, all-hollow conductors with independent cooling circuits for the X, Y and Z-axes. By directly cooling each gradient layer, SIGNA Premier maximizes the duty cycle for Human Connectome protocols (MultiShell DTI and high resolution fMRI) and high resolution body, musculoskeletal and cardiac imaging without sacrificing patient comfort or bore size. As a result, SIGNA Premier is the only MR with 60 cm performance in a true 70 cm bore.

80
mT/m amplitude

200
T/m/s slew rate

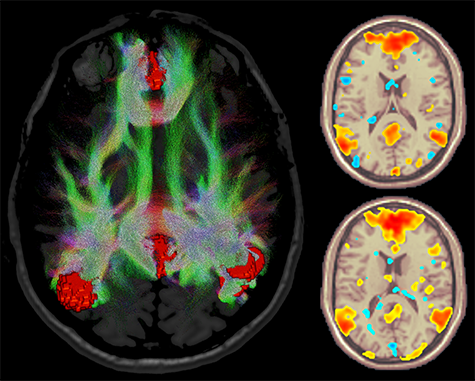

product-product-categories-magnetic-resonance-imaging-signa premier-fmri.png



Greater consistency and stability for advanced fMRI

An all-hollow gradient coil with a force-balanced design leads to superb stability for the most demanding applications.


With great speed comes great clarity

Speed plays an important role in making research protocols practical for clinical use. In addition to a high performance gradient coil and an industry-leading number of channel counts, SIGNA Premier includes three accelerating techniques, HyperBand, HyperSense and HyperCube, which provide astonishing imaging with unsurpassed speed. Used together, these technologies help researchers achieve standard clinical exam times for advanced imaging protocols.

HyperBand

product-product-categories-magnetic-resonance-imaging-signa premier-icon1.png

Excites multiple slices during a single acquisition to accelerate scan speed

HyperSense

product-product-categories-magnetic-resonance-imaging-signa premier-icon2.png

Utilizes proprietary compressed sensing technology for up to 8x reduction in scan time* while maintaining resolution

HyperCube

product-product-categories-magnetic-resonance-imaging-signa premier-icon3.png

Selective excitation for higher spatial resolutions and reduced scan times

*Compared to conventional imaging

Experience freedom with AIR Technology

When we set out to build the MR of the future, one thing was certain, we knew we needed to revolutionize the patient-coil experience. We started this journey with SIGNA Premier. Drawing inspiration from the interactions and objects that bring us comfort in our daily lives, we realized that to a patient, the experience of wearing coils is similar to the experience of being covered with a blanket. This realization led us to develop the innovative AIR Technology. A revolutionary, lightweight coil design that comfortably conforms to a patient’s body. It’s also less cumbersome for technologists to position and has the high density channel count radiologists rely on for image quality.

Watch the video
  • Form fitting for every form

    Freedom in coil positioning and handling is the ultimate goal of any coil design. The weight of coil technology is half of this design challenge. The other is flexibility. AIR Technology has an industry-leading flexible design. From young patients to professional athletes, it comfortably conforms to the size and shape of every patient. Not only does this improve the scan experience, it has the added benefit of improving signal quality by bringing the elements closer to the patient.

    Industry-leading flexible design

  • A revolution starts with a single loop

    To design a lighter coil that conforms to the shape of individual human anatomies, we had to start with the underlying coil technology. Each AIR Technology coil element is comprised of two basic components. The Inca conductor and E-mode module. Two powerful pieces of technology designed to improve SNR regardless of condition, giving us the flexibility to create coil geometries without compromising image quality. Together, they combine what was seven different components into two. This simplified design is the basis for a revolutionary coil design that is 60 percent lighter, offers more flexibility and has the largest area of coverage.

    Weighs less than
    0.3
    grams per sq cm


    60%
    Lighter*

    *Compared to previous generation technology

  • Channel after channel of industry-leading coverage

    Because AIR Technology is more flexible than the traditional electromechanical design, elements can overlap one another while maintaining signal performance. The result, a coil suite with the industry’s highest density coverage for whole body, multi-station imaging with more than 140 total channels. This ultra-high channel density improves parallel imaging acceleration and signal penetration at the same time. Patients and technologists benefit from a lightweight, flexible design and radiologists get the extra channels they need for outstanding image quality. In the end, everybody wins with AIR Technology.

    Head Coil
    48
    channels over 35 cm

    Anterior Array
    30
    channels over 65 cm

    Posterior Array
    60
    channels over 110 cm

  • 48 Channel Head Coil and Coil Suite

    The optional 48 Channel Head Coil delivers phenomenal performance for every patient. Its fit-adaptable design addresses 99.99 percent of the patient population while preserving high SNR. It also maximizes the clinical capabilities of advanced imaging applications such as HyperWorks technologies and is compatible with both EEG and fMRI simultaneously.

    fits
    99.99%
    of the patient population.

Advanced Diffusion

product-product-categories-magnetic-resonance-imaging-signa premier-Image2.png
Single-shot DWI
b = 10,000 s/mm2
TE = 92.8 ms
product-product-categories-magnetic-resonance-imaging-signa premier-Image1.png

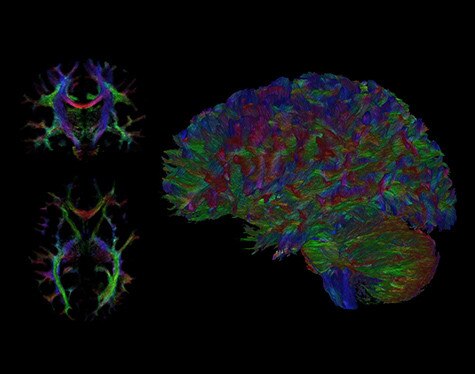

MultiShell
2.5 mm isotropic
b = 1,000 and 2,500 s/mm2

Diffusion imaging has never been so intelligent

As a standard biomarker in oncology, diffusion imaging plays a critical role in cancer detection and staging. However, because certain anatomical regions are prone to large distortions that limit resolution, the current standard for diffusion imaging has its limitations. SIGNA Premier uses intelligent quantitative solutions and an advanced diffusion package to automatically detect and correct distortion, artifacts and motion. The result is improved co-registration with anatomical information, improved visualization of structures in difficult-to-image areas and higher resolution without any restrictions. This is achieved without any user intervention, additional scan time or complicated workflow.

oduct-product-categories-magnetic-resonance-imaging-signa premier-Co-Registration Icon.png

Improved co-registration with anatomical information

product-product-categories-magnetic-resonance-imaging-signa premier-Visualization Icon.png

Improved visualization of the most challenging areas

product-product-categories-magnetic-resonance-imaging-signa premier-Resolution Icon.png

Higher resolution without any restrictions

  • Fueling the Future of MR

    Our SIGNA™Works productivity platform redefines what’s possible. Acquire calculated, quantitative ADC maps with MAGiC DWI. Streamline post-processing for higher efficiency and enhanced workflow with the amazing capabilities of ImageWorks and improve image quality up to eight times faster with our HyperWorks applications.

    Learn more about SIGNA™Works

Today’s clinical challenges are growing more specific. They go beyond the need to see, to the need to understand and they require a focused and collaborative effort to solve. SIGNA Premier was created from such an effort, which is why it’s not just the next iteration of today’s technology. It’s the MR technology of the future, so we can start building a better understanding of diseases today.
